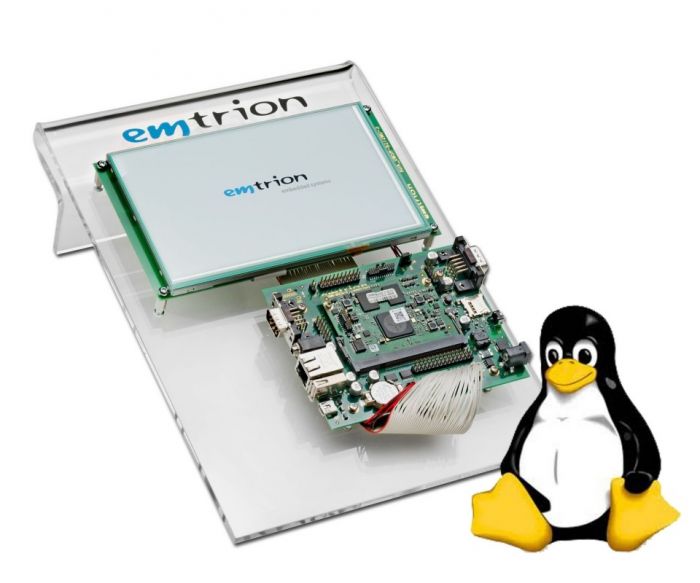

The developer Kit offers a completely pre-assembled composition of CPU module, baseboard and display. The favored operating system is already pre-installed allowing to start directly your evaluation and development on this module. This developer kit is particularly suitable for evaluating hardware and application development on Linux with additional PCIe modules.
• CPU-Modul: DIMM-MX6-PCIe with i.MX6Q, 1GB DDR3-RAM and 2GB NAND (different CPU type and memory configuration is possible on request)
• Baseboard: Tarion
• Display ETM0700G0BDH6
• Operating System: Linux (either Debian-based or with Yocto created RootFS)
Software
optional and exclusive only available with emtrion kits: ARM DS-5 Basic Edition Package
| Name | Distribution | Version | Codename | |
|---|---|---|---|---|
| Linux | emLinux / Yocto | 1.5.1 | Dora | Details |
| Linux | Debian | 8.x | Jessie |
Hardware features
• CPU Module DIMM-MX6 Quad mounted on DIMM-Base Tarion
• with power supply
• pre-installed OS
• TFT Display with capacitive Touch on Plexiglas mount
• also available with DIMM-MX6 Dual and Solo module
Accessories
| ADA-CAN_3V3 | Adaptation cable with high-speed CAN transceiver from LVTTL interface to CAN (D-SUB9). | ||
| ADA232 | Adaptation from LVTTL UARTs to RS232 with D-SUB9 connector. | ||
| DIMM-Debug | Debug-Board for emtrion's DIMM series CPU modules. | ||
| miniPCIe WLAN & Bluetooth module | Intel Centrino Advanced-N 6235: 802.11a/g/n, 2x2, dual-band Wi-Fi + Bluetooth 4.0, PCI Express Half Mini Card |
