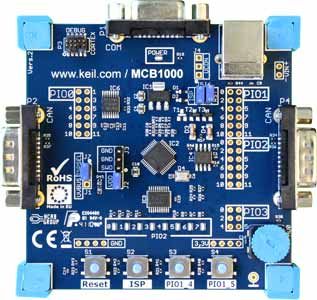

Connectors USB, CAN, RS232
- USB:1 x Full-Speed USB device with USB Standard-B Connector
- CAN:1 x DB9 Male Connector
- RS232:1 x DB9 Female Connector
- Other Connectors:1 x 10pin Cortex Debug Interface
- Push-buttons:4 x Push-buttons: 2 GPIO, ISP and Reset
- Potentiometer:1 x
- LEDs:9 x LEDs: eight user, one PWR LED
- Oscillator:12 MHzCrystal Oscillator
- Power Supply:5 V USB Powered
- Device:LPC1343FBD48
- Compatible Devices:LPC1343,
Form Factor 80 mm x 80 mm
- Custom:80 mm x 80 mm
