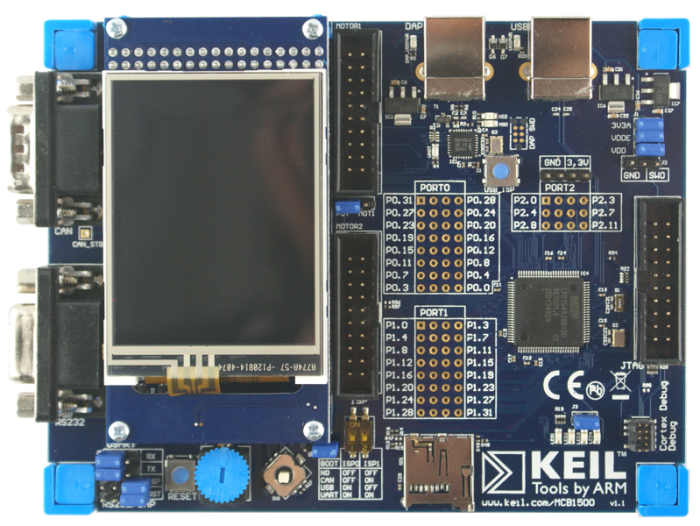

I/Os 76 Digital IOs (shared with Analog IOs)
- Prototyping Area:4 PORT0 Prototyping Area with 2.54 mm pitch
- Prototyping Area:4 PORT1 Prototyping Area with 2.54 mm pitch
- Prototyping Area:4 PORT2 Prototyping Area with 2.54 mm pitch
- Digital I/Os:76 x Digital IOs (shared with Analog IOs)
Connectors USB, CAN, RS232
- USB:1 x Full-Speed USB device with USB Standard-B Connector
- CAN:1 x DB9 Male Connector
- RS232:1 x DB9 Female Connector
- Other Connectors:1 x JTAG Interface
- Other Connectors:1 x Cortex Debug Interface
- Other Connectors:2 x Motor Control Connectors
Controls Push-buttons, Potentiometer, Joystick
- Push-buttons:2 x Push-buttons: DAP USB-ISP and Reset
- Potentiometer:1 x
- Joystick:1 x 5-position Joystick
Other LED, GLCD
- LEDs:6 x LEDs: Four user, one USB PWR LED, one DAP PWR LED, one DAP UART LED, two DAP HID/MSD LEDs
- GLCD:1 x 240.320 2.4 inch QVGA Touchscreen Display
Core Components LPC1549JBD100, 5 V Power
- On-board Debug Adapter:1 x On-board CMSIS-DAP
- Oscillator:12 MHzCrystal Oscillator
- Power Supply:5 V USB Powered
- Device:LPC1549JBD100
- Compatible Devices:LPC1500 Series,
Form Factor 100 mm x 130 mm
- Custom:100 mm x 130 mm
