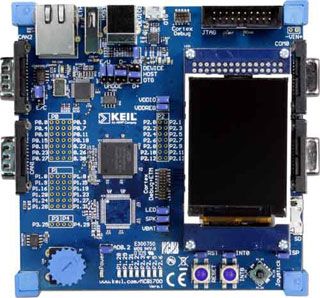

main product photo

Keil MCB1700

Keil MCB1500 Board Support and Examples



Keil MCB1500 Board Support and Examples

I/Os 70 Digital I/Os (depending on configuration)
  • Prototyping Area:4 Prototyping areas connected to I/Os
  • Digital I/Os:70 x Digital I/Os (depending on configuration)
Connectors USB, CAN, RS232, Ethernet
  • USB:1 x USB 2.0 Full-speed Host/OTG interface (USB Host connector)
  • USB:section class="device-features"> span>1 x USB 2.0 Full-speed Device interface (USB Device connector)
  • CAN:2 x CAN
  • RS232:2 x RS232
  • Ethernet:1 x 10/100 Ethernet Port
  • Other Connectors:1 x Speaker with amplifier
Controls Push-buttons, Potentiometer
  • Push-buttons:2 x Push-Buttons: Reset, INT0 (external interrupt)
  • Potentiometer:1 x Potentiometer for ADC Input
Other LED, GLCD
  • LEDs:8 x I/O Port LEDs
  • GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen
Core Components LPC1768, 5 V Power
  • Oscillator:12 MHzCrystal Oscillator
  • Power Supply:5 V USB Powered
  • Device:LPC1758
  • Device:LPC1768
  • Compatible Devices:LPC175x,
  • Compatible Devices:LPC176x,
Form Factor 120 mm x 120 mm
  • Custom:120 mm x 120 mm
