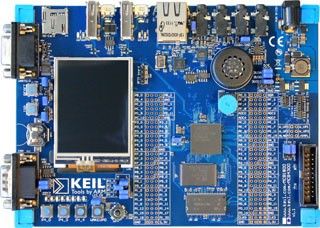

The Keil MCB4300 Evaluation Board enables you to create and test working programs based on the NXP LPC4300 family of ARM Cortex™-M4 processor-based devices.
The MCB4300 Evaluation Board is available in two different configurations:
- The MCB4350 Evaluation Board is populated with an NXP LPC4350 device
- The MCB4357 Evaluation Board is populated with a NXP LPC4357 device
Development Software
The MCB4300 Evaluation Board and Starter Kit includes the MDK-ARM Lite Edition Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB4300 evaluation board, and a Quickstart guide are included.
The MCB4300 is available as a stand alone evaluation board or as a starter kit which includes the
ULINK-ME / ULINK2 debug adapter.
Connectors USB, CAN, RS232, Ethernet, LineIn, LineOut
- USB:1 x USB 2.0 High-speed Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
- USB:1 x USB 2.0 Full-speed Host/Device interface (USB host + micro USB Device connectors)
- CAN:1 x CAN
- RS232:1 x RS232
- Ethernet:1 x 10/100 Ethernet Port
- Line In:2 x Audio CODEC with Line-In/Out and Speaker/Microphone
- Line Out:2 x Audio CODEC with Line-In/Out and Speaker/Microphone
- Other Connectors:1 x On-board Speaker
Controls Push-buttons, Potentiometer
- Push-buttons:6 x Push-Buttons: 3 x GPIO, Reset, ISP, WAKEUP
- Potentiometer:1 x Potentiometer for ADC Input
Other LED, GLCD
- LEDs:8 x I/O Port LEDs
- GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen
Core Components LPC4357, 5 V Power, 8 V - 12 V Power
- Oscillator:12 MHzCrystal Oscillator
- Power Supply:5 V USB Powered
- Power Supply:8 V - 12 V External Power Supply
- Device:LPC4350
- Device:LPC4357
- Compatible Devices:LPC435x,
On-Board Memory 16 MB SDRAM, 16 MB NOR Flash, 4 MB Quad-SPI Flash, 16 kB EEPROM
- RAM:1 x 16 MB SDRAM
- Flash:1 x 16 MB NOR Flash
- Flash:1 x 4 MB Quad-SPI Flash
- Flash:1 x 16 kB EEPROM
- SD/microSD/MMC Card Holder:1 x microSD Card Holder
Form Factor 124 mm x 170 mm
- Custom:124 mm x 170 mm
Features
- 204MHz LPC4350 device with ARM Cortex-M4 processor and Cortex-M0 coprocessor (LBGA256)
- On-Chip SRAM: 136KB (LPC4357), 264KB (LPC4350)
- On-Chip Flash: 1MB dual bank (LPC4357), no on-chip Flash (LPC4350)
- On-Board Memory: 16MB NOR Flash, 4MB Quad-SPI Flash, 16 MB SDRAM, & 16KB EEPROM (I2C)
- Color QVGA TFT LCD with touchscreen
- 10/100 Ethernet Port
- High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
- Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
- CAN interfaces
- Serial/UART Port
- MicroSD Card Interface
- 4 user push-buttons + reset
- Digital Temperature Sensor (I2C)
- Analog Voltage Control for ACD Input
- Audio CODEC with Line-In/Out and Microphone/headphone connector + Speaker
- Debug Interface Connectors
- 20-pin JTAG (0.1 inch)
- 10-pin Cortex debug (0.05 inch)
- 20-pin Cortex debug + ETM Trace (0.05 inch connector)
Ordering Information
- MCB4350: MCB4350 evaluation board
- MCB4350UME: MCB4350 starter kit (includes ULINK-ME)
- MCB4357: MCB4357 evaluation board - available Q3,12
- MCB4357UME: MCB4357 starter kit (includes ULINK-ME) - available Q3,12
