Mounted Device: LPC54114J256BD64
Compatible Devices: LPC54110
Debug Interface: JTAG/SW JTAG/SW

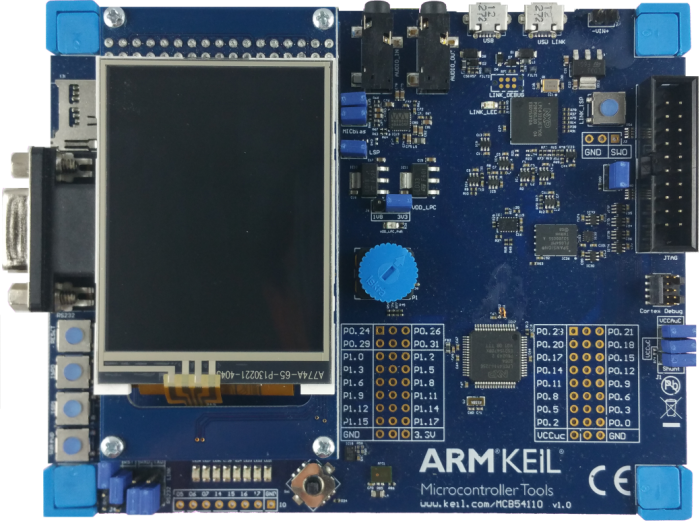

KEIL MCB54110 DEVELOPMENT BOARD
Connectors USB, RS232, LineIn, LineOut
- USB:1 x USB 2.0 Full-speed Device interface (micro USB Device connectors)
- RS232:1 x RS232
- Line In:1 x Audio CODEC with Line-In/Out and Speaker/Microphone
- Line Out:1 x Audio CODEC with Line-In/Out and Speaker/Microphone
- Other Connectors:1 x On-board Speaker
Controls Push-buttons, Potentiometer
- Push-buttons:4 x Push-Buttons: Reset, ISP0, ISP1, WAKEUP
- Potentiometer:1 x Potentiometer for ADC Input
Other LED, GLCD
- LEDs:8 x I/O Port LEDs
- GLCD:1 x 240.320 2.4 inch Color QVGA TFT LCD with resistive touchscreen
Core Components LPC54114J256BD64, 1 V Power
- Power Supply:1 V USB Powered
- Device:LPC54114J256BD64
- Compatible Devices:LPC54110,
On-Board Memory 8 MB SPI Flash
- Flash:1 x 8 MB SPI Flash
- SD/microSD/MMC Card Holder:1 x microSD Card Holder
The MCB54110 is available as a stand alone evaluation board or as a starter kit which includes the ULINK ME / ULINK2 debug adapter.
